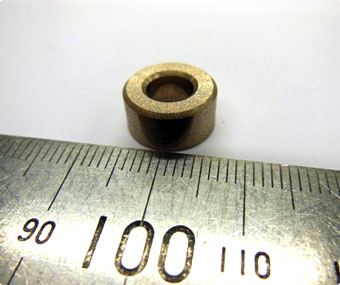

BEARPHITE CL
By developing materials and manufacturing methods, we have developed "BEARPHITE CL" which has excellent friction and ware characteristics, by depositing copper on the bearing surface even with a small amount of copper.
Characteristics
- Even with a small amount of copper, friction and wear characteristics are ensured by depositing copper on the bearing surface.
- Sliding performance is equal to or better than bronze sinter bearings.
- Durability is equal to or better than conventional copper-iron materials.
| Chemical component wt% | |||
|---|---|---|---|
| Fe | Cu | Other | |
| Bronze based material | - | 90 | 10 |
| Developed material | 78 | 20 | 2 |
Examples of use
- Automotive electrical components: Power window motor, Blower fan motor
- Information equipment: Cooling fan motor
- Office equipment: Photocopier, Laser printer
Forming thin layler of copper on the surface.

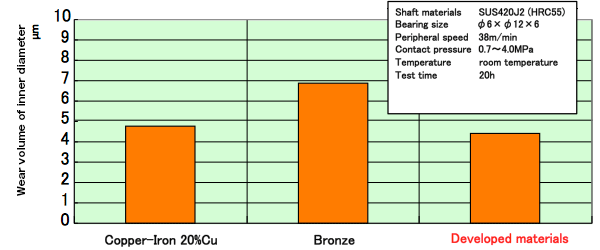

Fig. Comparision of inner diameter wear
