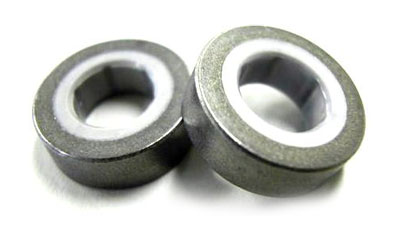

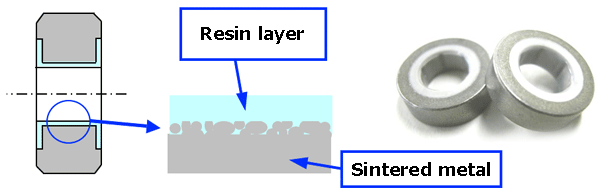

Hybrid BEARPHITE that are resin products that can be used in high PV ranges was developed based on conventional sintered metals.

• Using the ultra-high molecular weight resin material strong to abrasive wear
• Can be used in high PV ranges　→　Allowable PV value:20MPa・m/min
• Same dimensions as rolling bearing for office machine　→　Can be replaced directly
• Can be used in soft mating shaft　→　Suppress of wear of shaft

Examples of use

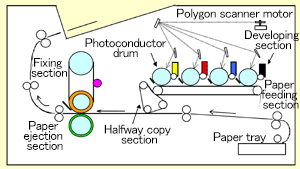

• Bearing for Photoconductor drum and Bearing for transfer unit for Office machine(LBP,PPC)

Test condition

Comparison of the coefficient of friction

• Shaft　SUJ2
• Clearance　20μm
• Anbience Normal temperature、Normal humidity
• Test time　500h
